TPT-ST25 CHROME

Timpano TPT-ST25 CHROME 4” PRO Audio Super Tweeters 900 Watts 8 Ohm – Pair

The ST25 tweeters are a high performance pair of 4 inch high compression bullet tweeters that are rated at 900 watts max power. Ready to deliver major concert sound to your sound system.

• Titanium diaphragm with a 1.5″ voice coil
• They handle 300 watts RMS to provide continuous high output levels
• High sensitivity output designed for pro audio systems

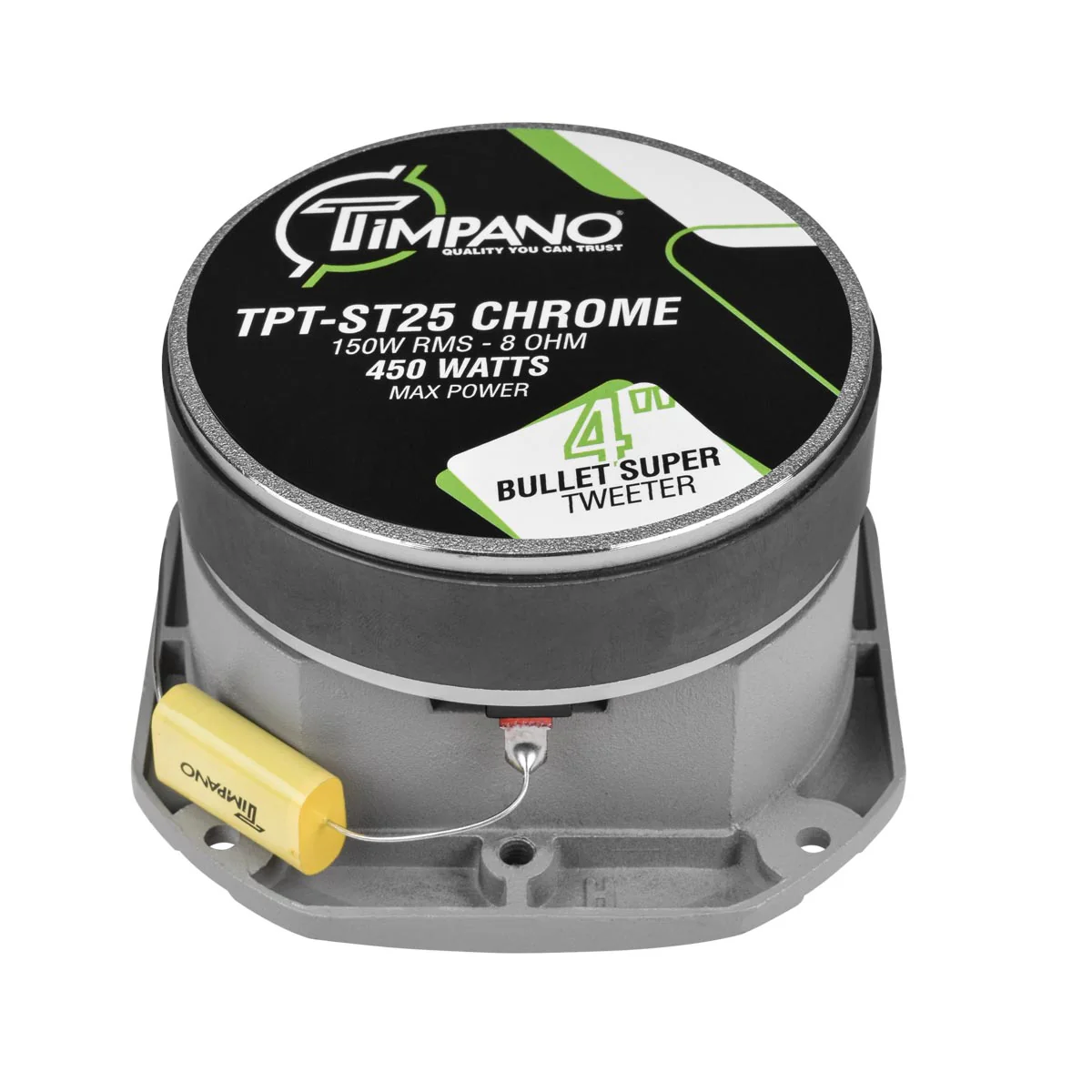

Built In Crossover – Capacitor that acts as a crossover to attenuate low end frequencies that might otherwise harm the super tweeters.

These tweeters are capable of generating high end frequencies at extremely loud volume, to keep up in the high SPL systems. Built with high strength magnet and a pure titanium diaphragm are designed to reproduce the brightest and crispest sound. Also available in Black finish.

Specs:
900 Watts Max Power per pair / 450 Watts each
225 Watts RMS Power each with Digital DSP
150 Watts RMS Power each with Car Audio Crossover
Impedance: 8 Ohm each tweeter
Sensitivity: 109 dB
Frequency Response: 3,500 – 20,000Hz
Titanium Diaphragm with a 1.5″ voice coil

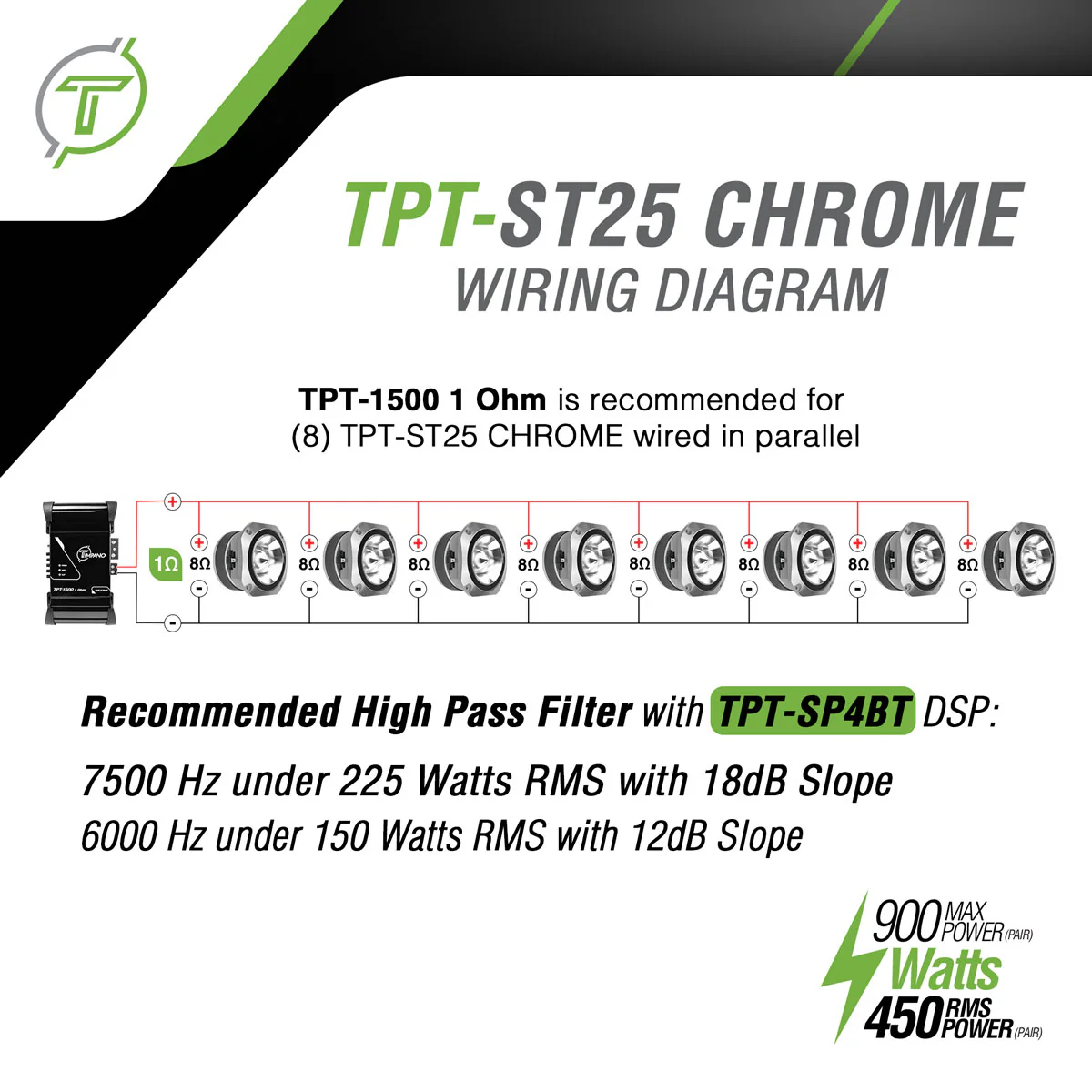

Recommended High Pass Filter on TPT-SP4BT DSP:
7500 Hz under 225 Watts of Amplifier RMS Power with 18dB Slope
6000 Hz under *150 Watts of Amplifier RMS Power with 12dB Slope
(*Maximum power handling using a regular car audio amplifier crossover)

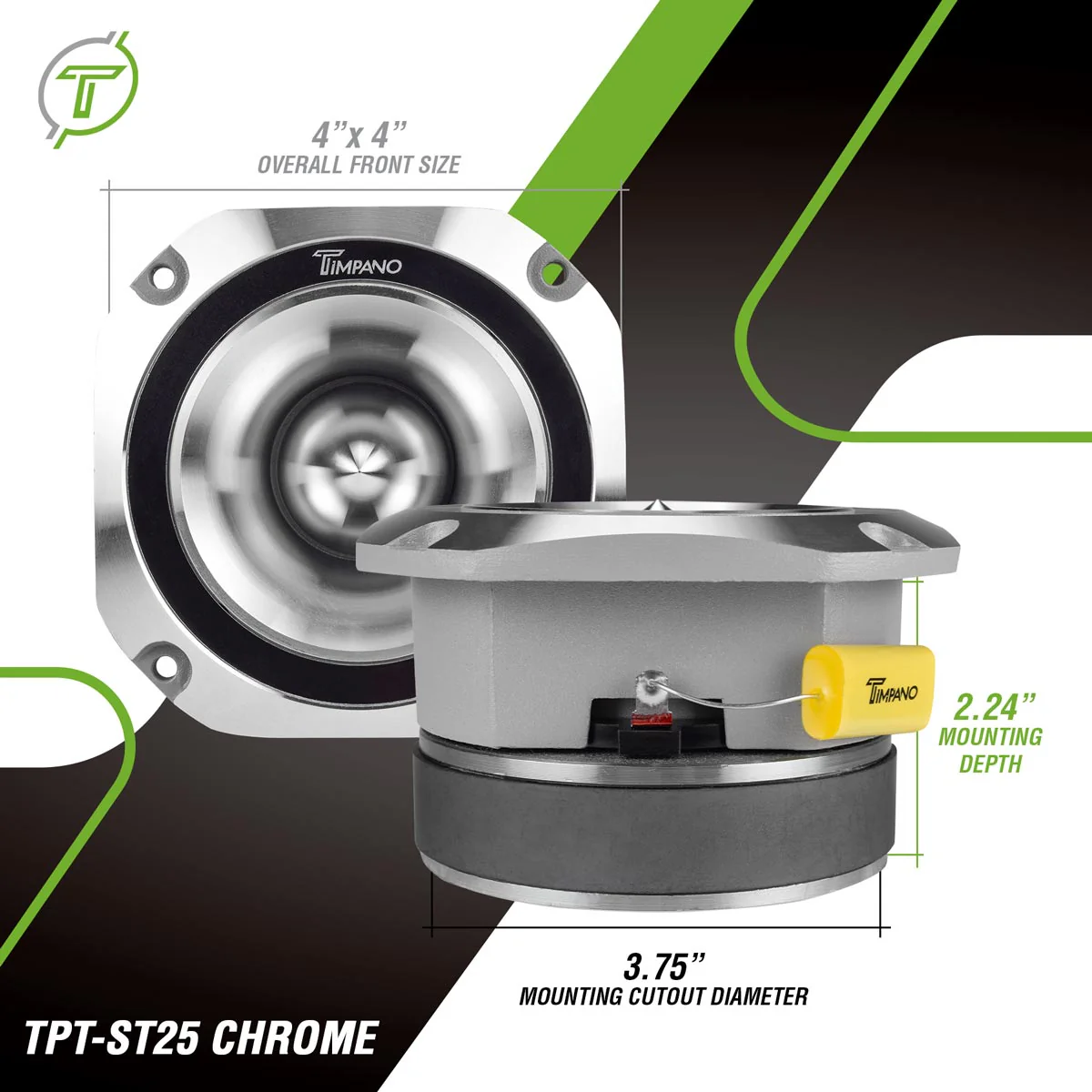

Sizing:
Mounting Depth: 2.24”
Mounting Cutout Diameter: 3.75″
Overall Size: 4″ x 4″ x 2.68″
Weight: 2.65 Lbs each tweeter

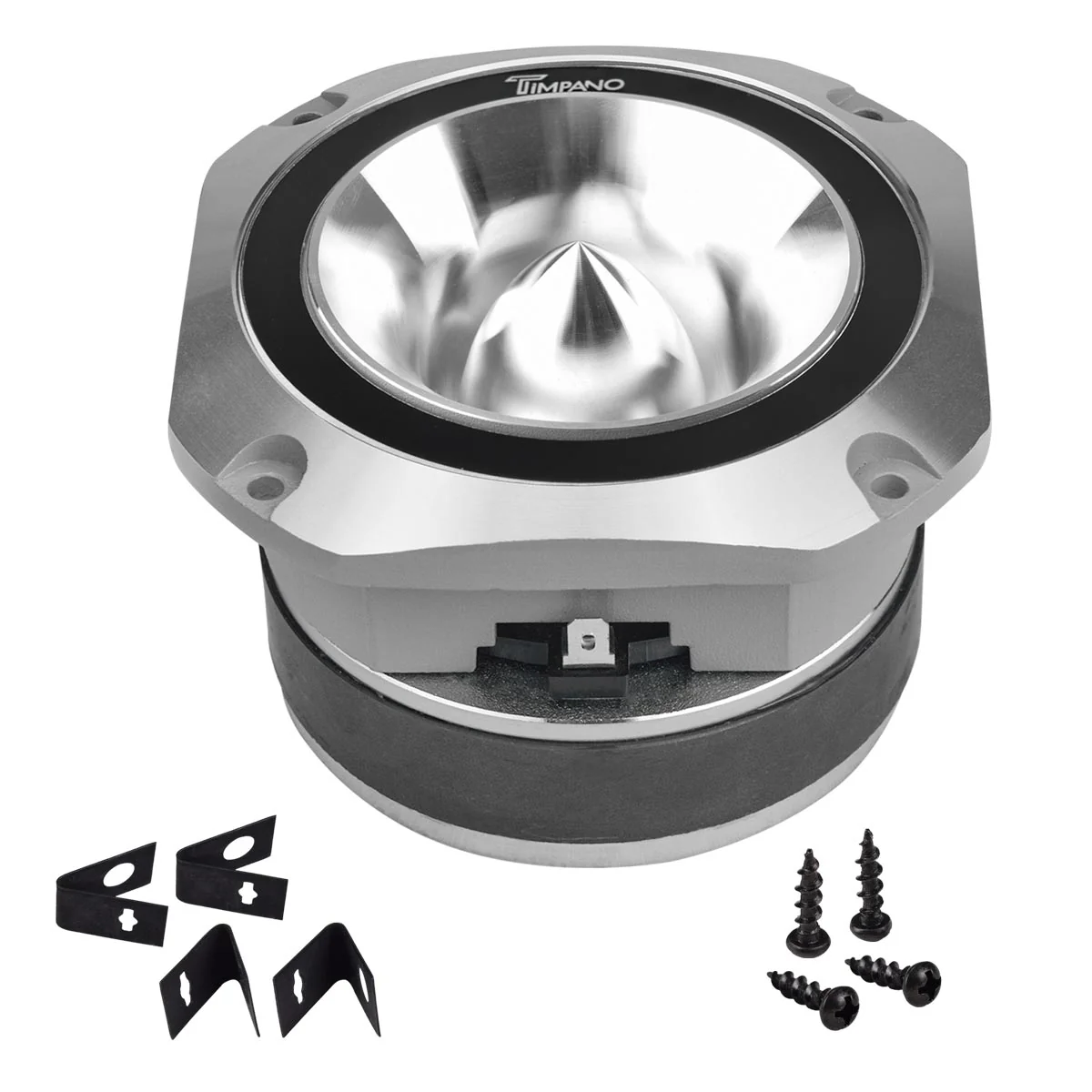

Accessories Included:
4x Mounting Screws
HPF Capacitor attached per tweeter
1x Timpano Logo Sticker

With a great price-to-performance, these tweeters provides output of professional systems without breaking the bank. Sold as a set of 2 tweeters (pair).
